Design & Installation

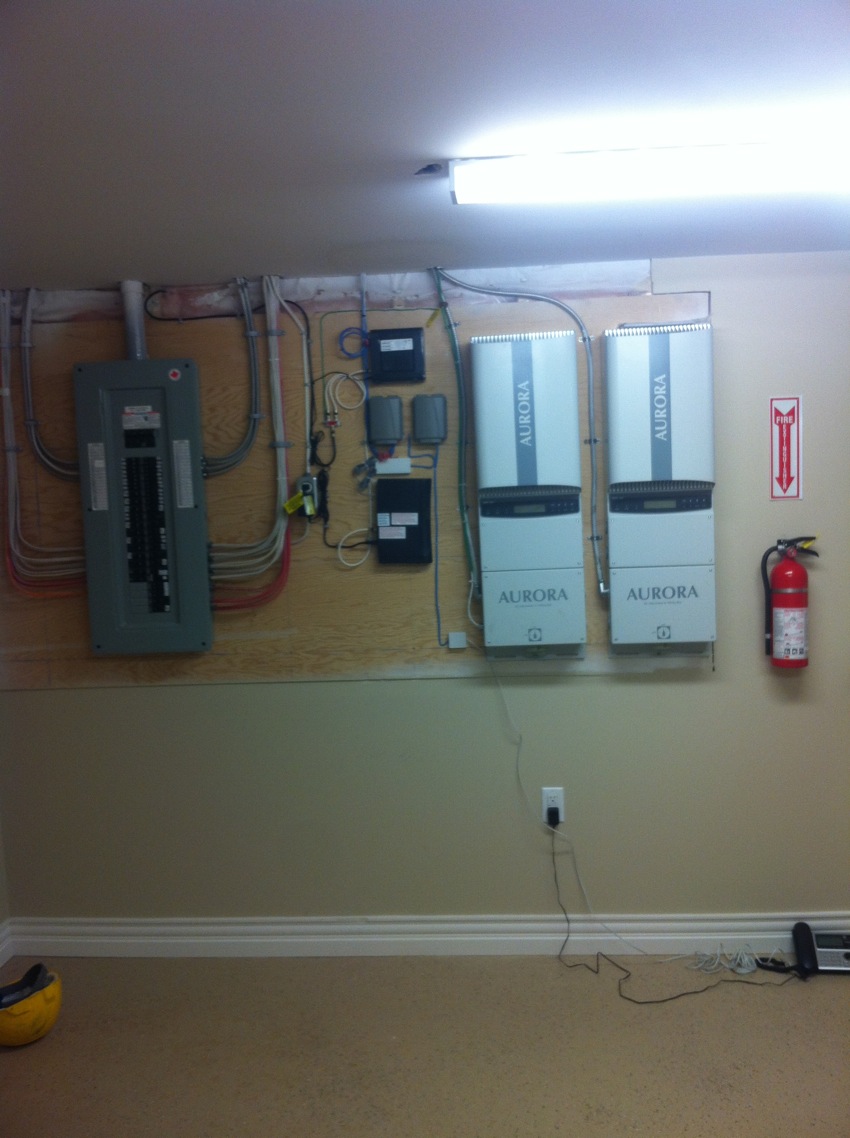

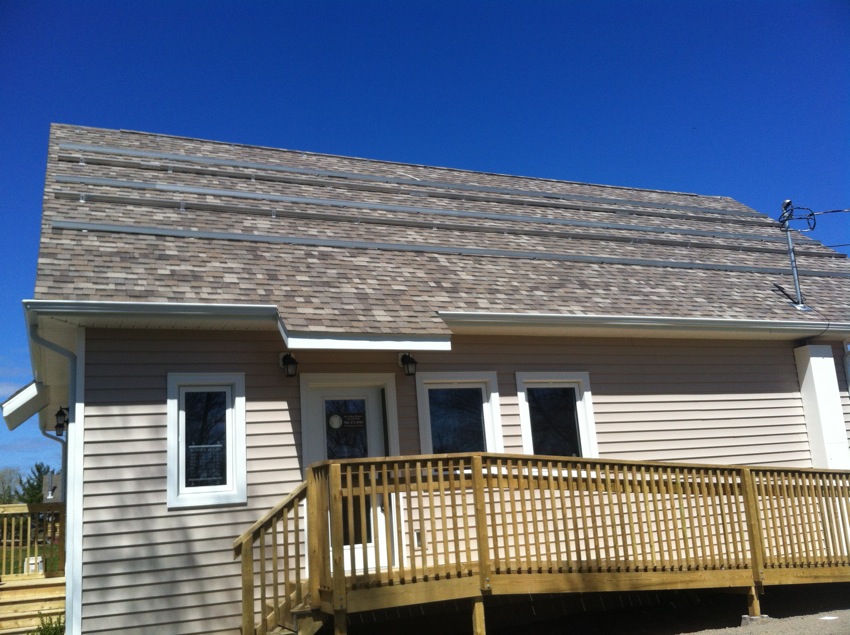

This is a 10kW system consisting of two 5kW inverters and 42 solar modules. The inverters are located downstairs in the staff dining area.To install the solar panels we first install the rail to which the solar array will be mounted.

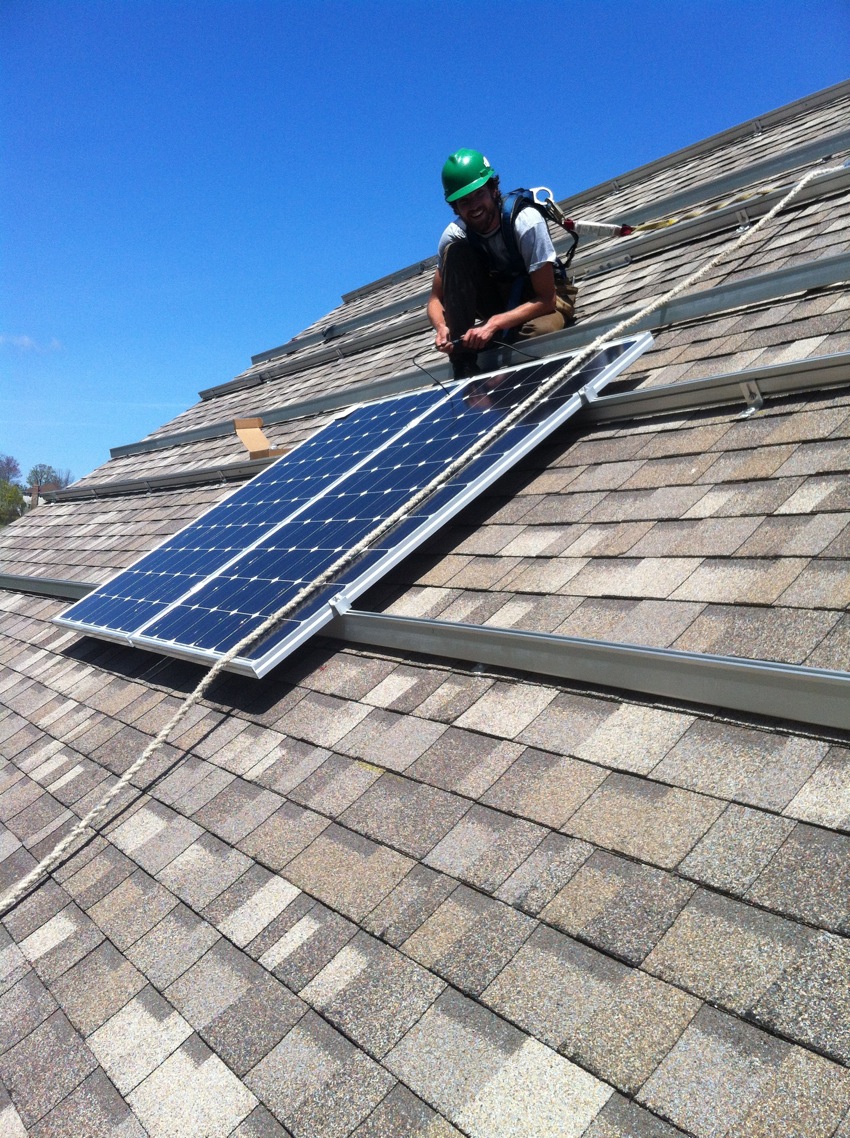

Next the solar modules are bolted to the rail and joined toether into two strings of 10 in series and two strings of 11 in series.

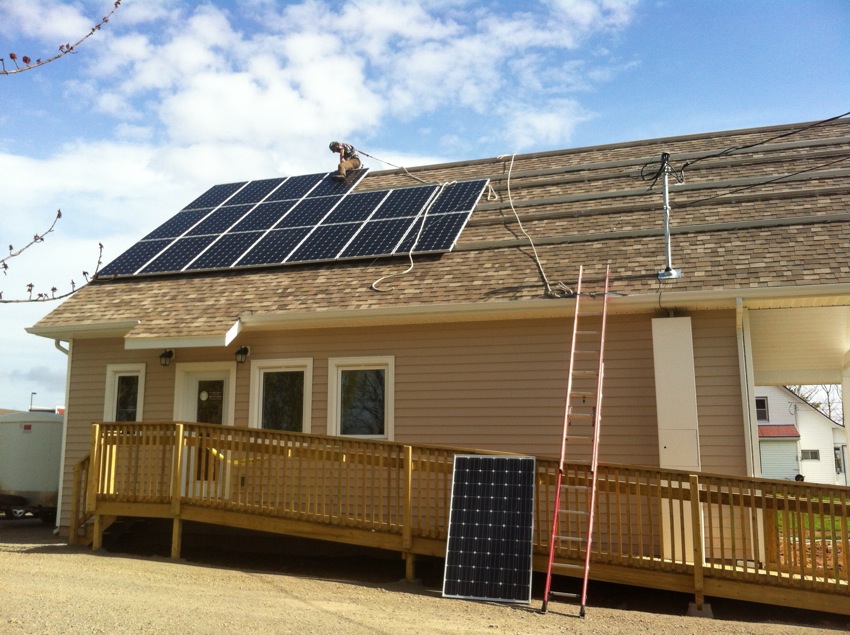

More solar modules are added. Care is taken to leave space to move and work as we do so.

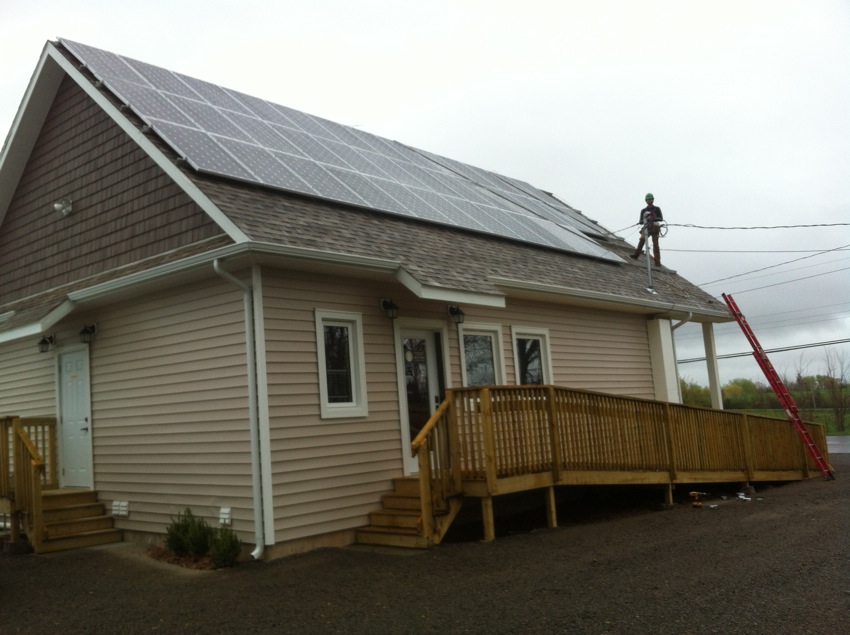

Installation continues...

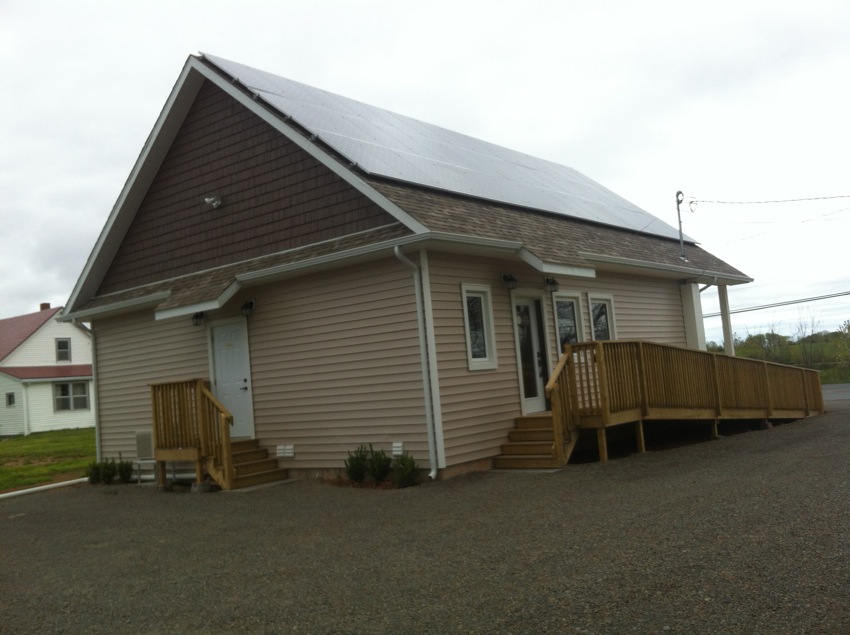

And here we have the installation complete.
